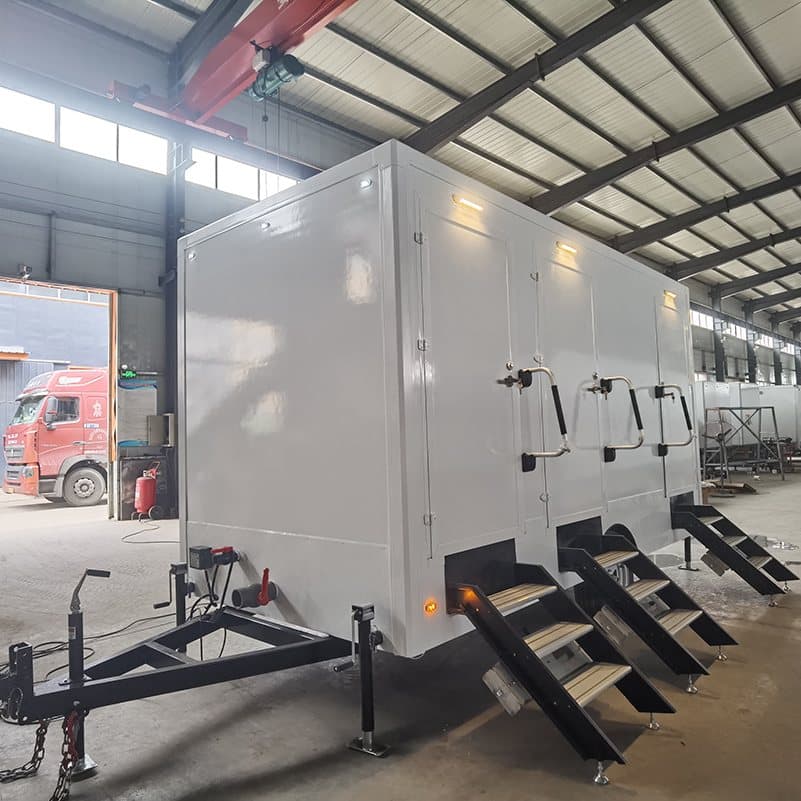

3-Door Mobile Toilet Trailer — Dori Trailers product photo 1 of 6

Mobile Toilets & SanitationModel: TT-3D

3-Door Mobile Toilet Trailer

R 55 058,08ZAR

Excludes delivery and optional extras. Delivery is quoted separately; see our shipping policy and return policy.

In stock, ready to order

Three-cubicle toilet trailer with individual doors and fold-down steps, LED-lit interiors and a panelled finish, built for events and sites.

1
Model
TT-3D
SKU
DT-TT-3D
Brand
Dori Trailers
Condition
new

Product overview

The 3-door mobile toilet trailer is the size that fits most jobs: three independent cubicles with their own doors and fold-down steps, on a single towable unit that one vehicle can deliver and position. It is the standard choice for weddings of 100 to 250 guests, school sports days, church gatherings, weekend markets, film sets and construction sites with 30 to 60 workers.

Because every cubicle has its own door, the trailer serves three people at once and never requires men and women to share a queue. The interiors are lit by LED on individual switches, fitted with flush toilets, ventilated through roof vents and finished in wipe-clean materials that stand up to daily site use as well as a white-linen event.

Water and waste are managed from an external service compartment: a fresh-water tank feeds each toilet through a 12 V demand pump, and a large waste tank holds the volume from a full weekend of events. Emptying is done from outside the cubicles through a service hatch, and the tanks are sized so that servicing can be scheduled between events rather than during one.

The body is an insulated panelled shell on a welded ladder-frame chassis finished in a light neutral tone, with a sealed non-slip floor and lockable doors. Running gear is a braked axle on leaf springs with 14 inch light-truck tyres, which keeps the trailer stable when the waste tank is full - the condition in which a poorly balanced toilet trailer becomes unpleasant to tow.

If you are buying for a hire fleet, this is the model with the best balance of capacity, weight and serviceability: big enough to earn its keep on every booking, small enough to tow and clean with one person.

Key features

  • Three independent cubicles, three doors
  • Fold-down step at each cubicle
  • Flush toilets and vanity basins
  • LED lighting on individual switches
  • Roof vents for continuous airflow
  • 350 L fresh and 750 L waste water tanks
  • External service hatch and drain point
  • Braked axle with a handbrake
  • 14 inch light-truck tyres
  • 220 V shore power with a 20 m cable

Specifications

The full specification sheet for 3-Door Mobile Toilet Trailer (Model TT-3D). Builds are made to order, so dimensions, equipment positions and finishes can be adjusted to your menu, load or site before delivery.

1. General

Type
Towable flush-toilet trailer
Model
TT-3D
Cubicles
3 separate cubicles
Overall length
About 4 m including drawbar
Overall width
About 1.9 m
Overall height
About 2.4 m
Tare mass
About 1 100 kg
GVM
1 800 kg
Users at capacity
3 at a time

2. Body & structure

Chassis
Fully welded steel ladder frame
Body construction
Insulated panelled shell
Exterior
Panelled and painted, light neutral finish
Floor
Sealed non-slip sanitary flooring
Doors
3 lockable cubicle doors with interior latches
Access
Fold-down step per cubicle
Service
External service hatch for tanks and pump

3. Cubicle fit-out (each)

WC
Flushing pedestal toilet
Basin
Vanity basin with mirror
Lighting
LED light with individual switch
Ventilation
Roof vent per cubicle
Accessories
Toilet-paper holder and coat hook
Interior
Wipe-clean wall and floor lining

4. Water system

Fresh water
350 L built-in fresh water tank
Waste water
750 L waste tank
Water pump
12 V demand pump
Filling
External fill point
Emptying
External drain point with service valve
Refill
About 280 flushes per fill

5. Running gear & electrical

Axle
Single 50 mm braked axle
Suspension
Leaf spring
Brakes
Mechanical disc brakes with handbrake
Wheels
14 inch steel rims, 5 stud
Tyres
185/70 R14 light truck
Coupling
50 mm ball coupling with safety chain
Power
220 V shore power inlet with 20 m cable
Battery
12 V lighting circuit; battery backup optional

6. Compliance & delivery

Registration
Sold unregistered; registration quoted separately
Warranty
12-month structural warranty on chassis and bodywork
Delivery
Insured freight nationwide, quoted in writing
LeadTime
5 to 10 business days for a standard build

Types & configurations

3-Door Mobile Toilet Trailer is built to order in the configurations below. Choose the layout that matches your equipment, then we build it that way rather than shipping a standard unit you have to adapt.

Wedding & function unit

Basins, mirrors and soft lighting throughout, finished for guest-facing events.

Construction site unit

Reinforced doors, external service access and sealed floors for daily site servicing.

Hire fleet unit

Standardised tanks, fittings and consumables so every trailer in the fleet services the same way.

Two-plus-one layout

Two general cubicles plus one urinal cubicle to speed up service at male-dominated events.

Available upgrades

Every item below can be fitted during the build or added to a unit you already own. Upgrades are quoted separately to the listed price; ask us for a written quote before you order.

  • 1 000 L waste tank upgrade
  • 12 V battery bank with charger
  • Hot water geysers in each cubicle
  • External hand-wash station
  • Disabled-access cubicle with wider entry
  • Solar charging panel
  • Stainless service compartment fittings
  • Branding wrap with your company colours
