Mobile Food TrailersModel: CT-340
3.4m Catering Food Trailer
Excludes delivery and optional extras. Delivery is quoted separately; see our shipping policy and return policy.
In stock, ready to order

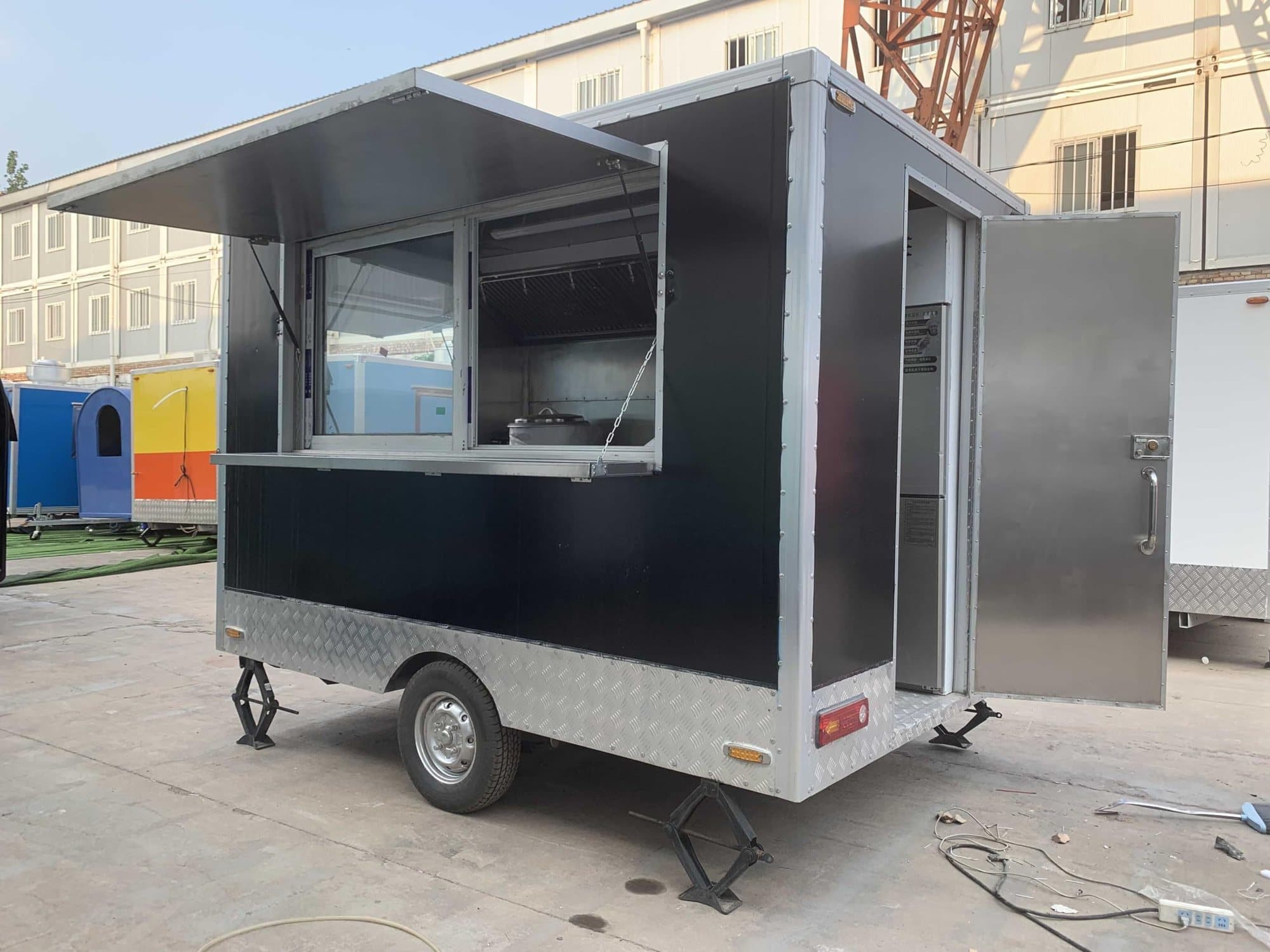

3.4m catering trailer with a full-width lift-up serving hatch, stainless steel interior and side entry door for high-volume events.
- Model
- CT-340
- SKU
- DT-FT-340C
- Brand
- Dori Trailers
- Condition
- new
Product overview
The 3.4m catering trailer is the event-catering version of our 3.4m platform. Where a street-trading trailer optimises for one narrow service point, this unit opens up the whole front of the trailer: a full-width lift-up hatch creates a long, continuous serving line that two or three people can work behind, so a function of 150 guests can be plated or a buffet can be laid out without queues building.
The interior is finished in stainless steel - walls, ceiling and work surfaces - which is the specification professional caterers and venue kitchens ask for. Stainless is non-porous, takes heavy cleaning, does not absorb food odours and reflects light, so a trailer this size stays bright and workable even at night under a single strip light. There are no timber or laminate surfaces in the food zone to swell or peel after a season of hot, wet service.
The layout gives you a long stainless work run behind the hatch, a separate prep run on the opposite wall, a two-bowl sink with drainers, and clearance for upright or under-counter refrigeration. Cooking equipment usually sits on the work run beneath the extraction point; we pre-fit the extractor bracket and the roof vent so the installation is a bolt-on job rather than a fabrication project.
A side entry door with an internal step keeps staff traffic out of the serving line, and the drawbar carries a lockable equipment box for gas bottles, cleaning equipment and the items you do not want inside the food area. Externally, the trailer is finished in black or green as standard or in your own colours.
This is the unit we recommend for wedding and corporate caterers, film and production catering, food festivals, sports events and any operation that feeds a large group in one sitting rather than serving passing trade.
Key features
- 3.4 m insulated catering body
- Full-width lift-up serving hatch
- Stainless steel walls, ceiling and counters
- Long stainless counter behind the hatch
- Two-bowl stainless sink with drainers
- 200 L fresh and 200 L waste water tanks
- Two pre-piped gas appliance points
- Drawbar equipment box for gas and tools
- 220 V shore power with 4 plug points
- Black, green or custom body colours
Specifications
The full specification sheet for 3.4m Catering Food Trailer (Model CT-340). Builds are made to order, so dimensions, equipment positions and finishes can be adjusted to your menu, load or site before delivery.
1. General
- Type
- Enclosed catering trailer
- Model
- CT-340
- Working length
- 3.4 m
- Interior width
- 1.8 m
- Interior height
- 2.15 m
- Counter height
- 900 mm
- Tare mass
- About 750 kg
- GVM
- 1 500 kg
- Standing capacity
- 2 to 3 operators
2. Chassis & body
- Chassis
- Fully welded steel ladder frame
- Drawbar
- 1 500 mm A-frame drawbar with equipment box
- Body panels
- Insulated composite panels
- Interior
- Stainless steel walls, ceiling and counters
- Floor
- Sealed non-slip deck with stainless trim
- Serving hatch
- Full-width lift-up hatch with gas struts
- Entry door
- Lockable side door with internal step
3. Running gear
- Axle
- Single 45 mm square solid axle
- Suspension
- Leaf spring
- Brakes
- Mechanical disc brakes with handbrake
- Wheels
- 14 inch steel rims, 5 stud
- Tyres
- 185/70 R14 light truck
- Coupling
- 50 mm ball coupling with safety chain
- Jockey wheel
- Heavy-duty swivel jockey wheel
4. Catering fit-out
- Work run
- Long stainless counter behind the hatch
- Prep surface
- Second stainless prep run on the rear wall
- Sink
- Two-bowl stainless sink with drainer boards
- Hot water
- Geyser point pre-installed
- Equipment bay
- Clearance for upright or under-counter refrigeration
- Storage
- Overhead cupboards, base shelving and drawbar box
- Extraction
- Pre-fitted extractor bracket and roof vent
5. Water, gas & electrical
- Fresh water
- 200 L built-in tank
- Waste water
- 200 L waste tank with drain
- Water pump
- 12 V pressure pump
- Gas points
- Two pre-piped appliance points with regulator
- Power input
- 220 V shore power, 20 m cable
- Plug points
- 4 x 220 V outlets
- Lighting
- 12 V LED strip lighting plus hatch work light
6. Compliance & delivery
- Registration
- Sold unregistered; registration quoted separately
- Warranty
- 12-month structural warranty on chassis and bodywork
- Delivery
- Insured freight nationwide, quoted in writing
- LeadTime
- 5 to 10 business days for a standard build
Types & configurations
3.4m Catering Food Trailer is built to order in the configurations below. Choose the layout that matches your equipment, then we build it that way rather than shipping a standard unit you have to adapt.
Buffet & function line
Full-width hatch with a continuous stainless counter for chafing dishes, platters and a carving station.
Plated service kitchen
Long work run with hot-holding and plating space, prep run behind for final assembly.
Film & production catering
Two work runs, large water capacity and a service line that serves crew quickly in shifts.
Food festival & market stall
Maximum customer-facing frontage with a till position at one end of the serving line.
Available upgrades
Every item below can be fitted during the build or added to a unit you already own. Upgrades are quoted separately to the listed price; ask us for a written quote before you order.
- Full stainless interior lining to walls and ceiling
- Extraction hood, high-speed fan and ducting
- Under-counter or upright refrigeration supplied and fitted
- Gas plumbing to three points with regulator
- 400 L fresh and waste water tanks
- Hot water geyser and mixer tap
- Pass-through rear window for a second service point
- Branding wrap, signage or painted graphics
